In the automotive interior industry, welding heat sealing technology has a wide range of applications, especially in areas where plastic parts need to be connected and sealed during the manufacturing process. For example, applications such as car mats, seat embossing, and seat massage airbags. The following is a specific analysis of these applications:
1. High-frequency heat sealing application of car mats
Application background:
Car floor mats need to ensure a close fit with the vehicle floor, as well as good wear resistance and anti-slip properties. High-frequency heat sealing technology provides an effective solution for the manufacture of floor mats.
Technical features:
The high-frequency heat sealing machine uses the principle of electromagnetic induction to heat the material in a very short time, causing the molecules in the material to vibrate and quickly fuse together.
High-frequency heat sealing technology can achieve one-time molding, saving manpower and time costs.
Process flow:
Design and production of molds: Design molds according to the internal structure of the car and the shape of the floor mats and wear-resistant blocks.
Material preparation: Select appropriate materials, such as PVC, rubber, etc., and perform cutting and cleaning.
Mold hot pressing: Put the preheated material into the mold, use a high-frequency heat sealing machine for hot pressing, and make the material completely hot-formed in the mold.
Finishing and inspection: Remove excess material, trim the edges, and perform quality inspection to ensure that the size, appearance, strength, etc. of the floor mat meet the standards.
2. Heat-sealing application of seat embossing
Application background:
Seat embossing is to form a specific pattern or texture on the seat surface to increase the beauty and comfort of the seat.
Technical features:
The heat-sealing technology forms the desired pattern or texture on the seat material on the mold by heating and applying pressure.
Different molds and materials can be used to achieve a variety of embossing effects.
Process flow:
Select suitable seat materials and embossing molds.
Place the seat material on the mold, heat and apply pressure to form a pattern or texture on the material.
Cool and remove the seat for quality inspection and finishing.

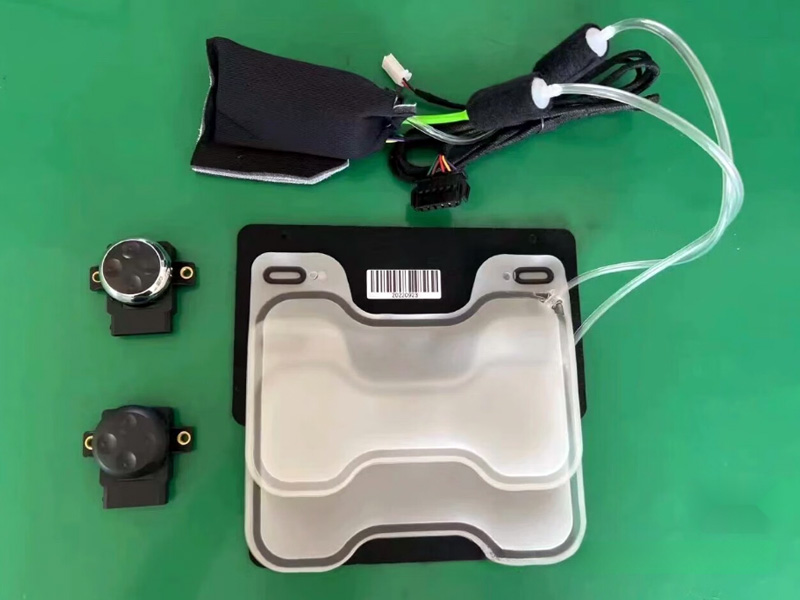

3. Heat-sealing application of seat massage airbags
Application background:
The seat massage airbag needs to be sealed and connected by welding and heat sealing technology to ensure the normal operation of the massage function.
Technical features:
Welding and heat sealing technology can ensure the sealing and connection strength of the airbag and meet the requirements of the massage function for the airbag.
You can use hot plate welding, high-frequency welding and other technologies to select the appropriate welding method according to the material and requirements of the airbag.
Process flow:
Select appropriate materials and airbag design.
Clean the airbag connection parts to ensure that there are no impurities such as dust and grease.
Use welding and heat sealing equipment to weld the airbag to ensure the sealing and connection strength of the airbag.
Perform quality inspection on the welded airbag to ensure that the welding effect meets the requirements.
Summary
Welding and heat sealing technology plays an important role in applications such as automotive foot pads, seat embossing and seat massage airbags. By selecting appropriate welding methods and equipment, combined with specific process flow and quality inspection requirements, high-quality product manufacturing can be achieved to meet the automotive interior industry's needs for aesthetics, comfort and functionality.
